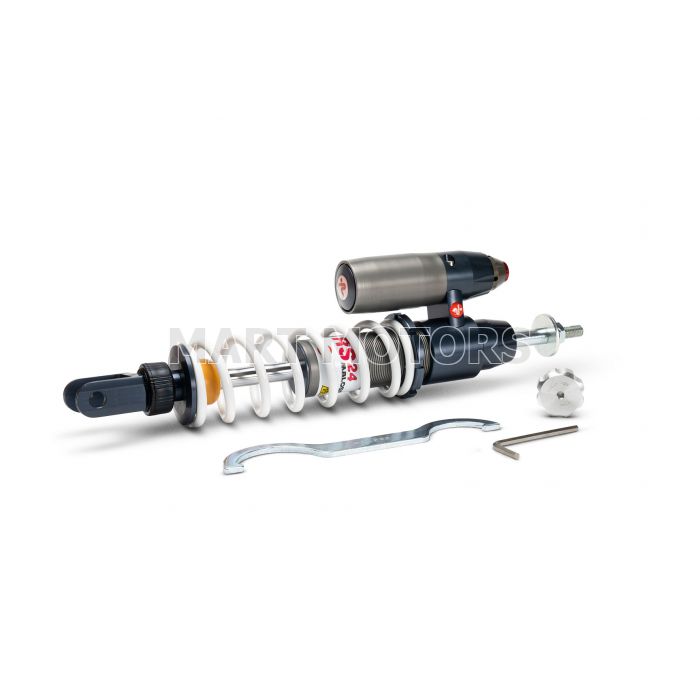

Malossi 4620159 RS24/10-R Rear Shock Absorber 333 mm
Malossi 4620159 RS24/10-R Rear Shock Absorber 333 mm
Couldn't load pickup availability
Engineered in collaboration between Malossi and Paioli, this compact and lightweight oil-gas shock absorber is crafted almost entirely from high-grade ergal. Built specifically for competitive scooter racing, it features a pressurized nitrogen compensation chamber that delivers consistent damping performance under demanding track conditions.
Advanced tunability includes micrometric spring preload adjustment, 24-position rebound damping, and dual low- and high-speed compression settings with approximately 10 positions each. With its hardened 14 mm steel rod, 36 mm piston, and low-viscosity fluid, this rear suspension ensures maximum stability, traction, and control.
Key Features
| Brand | Malossi |
| Product Type | Rear Shock Absorber |
| Model | RS24/10-R |
| Manufacturer Part Number | 4620159 |
| Position | Rear |
| Type | Oil-pneumatic shock absorber with separated compensation tank |
| Wheelbase | 333 mm (+25 mm) |
| Stroke | 62 mm |
| Piston Diameter | 36 mm |
| Rod Diameter | 14 mm |
| Rod Material | 38 NiCrMo4UNI 7845 steel, hardened and tempered with 25-30 micron hard chrome layer |
| Body Material | Ergal |
| Rebound Adjustment | Approx. 24 positions |
| Compression Adjustment | Dual low and high speed, approx. 10 positions each |
| Preload Adjustment | Micrometric ring nut regulation |
| Intended Use | Scooter competition / racing |
| Estimated Shipping Weight | 2.2 kg |
Highlights
- Developed in collaboration between Malossi and Paioli for competition racing
- Lightweight ergal body with a separated pressurized nitrogen compensation tank
- Triple adjustment system: spring preload, 24-click rebound, and separate high/low-speed compression
- Hardened 14 mm steel shaft with hard chrome coating and 36 mm dual laminar pack piston
Materials & care
Constructed primarily from lightweight ergal aluminium alloy with a hardened and chrome-plated 38 NiCrMo4UNI 7845 steel shaft, DU GUIDE sintered bronze bushes, and LUBRIFLON PTFEB 70 guide shoes. Keep seals clean of debris and inspect regularly for proper fluid and gas pressure retention.
Compatibility
| Manufacturer | Model |
|---|---|
| GILERA | GILERA EASY MOVING 50 2T |
| GILERA | GILERA RUNNER PureJet 50 2T LC <-2005 |
| GILERA | GILERA RUNNER PureJet 50 2T LC 2006-> |
| GILERA | GILERA RUNNER SP 50 2T LC <-2005 |
| GILERA | GILERA RUNNER SP 50 2T LC 2006-> (C451M) |
| GILERA | GILERA RUNNER FX 125 2T LC |
| GILERA | GILERA RUNNER FXR - SP 180 2T LC |
| GILERA | GILERA RUNNER 50 2T LC |
| GILERA | GILERA STORM 50 2T |
| PIAGGIO | PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M) |
| PIAGGIO | PIAGGIO FREE 50 2T |
| PIAGGIO | PIAGGIO LIBERTY 50 2T |
| PIAGGIO | PIAGGIO QUARTZ 50 2T LC |
| PIAGGIO | PIAGGIO SFERA RESTYLING 50 2T |
| PIAGGIO | PIAGGIO SFERA 50 2T |
| PIAGGIO | PIAGGIO ZIP Fast Rider 50 2T |
| PIAGGIO | PIAGGIO ZIP 50 2T 2000-> (C25EM) |
| PIAGGIO | PIAGGIO ZIP 50 2T <-1999 |
| PIAGGIO | PIAGGIO ZIP SP 50 2T LC 2001-> |
| PIAGGIO | PIAGGIO ZIP SP 50 2T LC <-2000 |
| VESPA | VESPA ET2 50 2T 2000-> |
| VESPA | VESPA ET2 50 2T <-1999 |
| VESPA | VESPA S 50 2T euro 2 (C381M) |
What's included
| SKU | Name |
|---|---|
| 1115148b | Complete gasket set for RS24/10/10-R shock absorbers |
| 1819736b | Shock absorber aluminium fixing |
| 2015149b | Overhaul kit (complete with bushes) for shock absorber |
| 2715156x | 10 shock absorber adjusting kit |
| 299213b | Spring for Malossi rear shock absorber (external Ø 56x190 mm - Ø wire 6 mm - k 1.8) |
| 3415191b | Piston kit for shock absorber |
| 4615150b | COMPLETE STEM for REAR SHOCK ABSORBER |
| 4615152b | CONNECTION KIT for REAR SHOCK ABSORBER |
| 4615154b | COAXIAL COMPRESSION ADJUSTING KIT |
| 4615161b | STEM KIT for REAR SHOCK ABSORBER |
| 607627b | Hooked key for shock absorber (for ring nuts Ø 48 / 58) |
| 6014578b | ALLEN KEY M11 for SHOCK ABSORBER |
| 6014580b | curved ALLEN KEY M4 for SHOCK ABSORBER |
