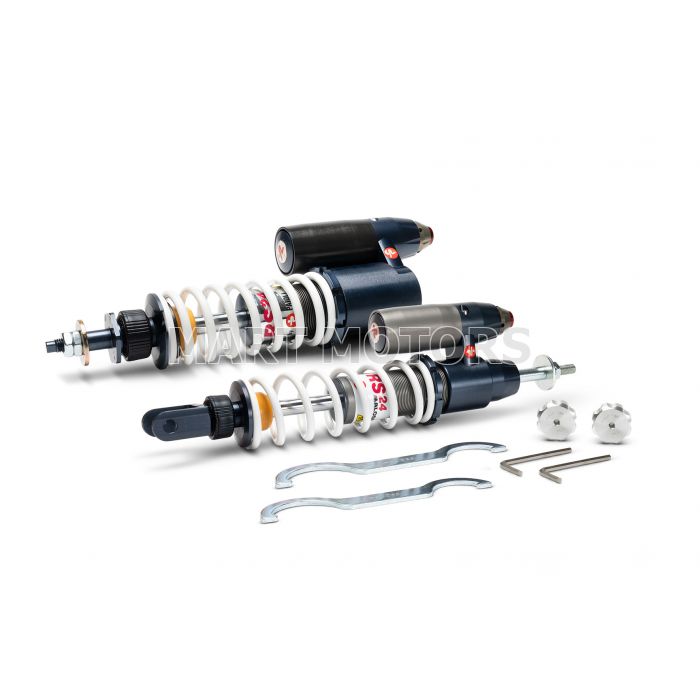

Malossi 4620162 RS24/10-R Shock Absorber Pair for Piaggio Zip SP

Malossi 4620162 RS24/10-R Shock Absorber Pair for Piaggio Zip SP

€1.152,28 EUR
€1.152,28 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The Malossi RS24/10-R front and rear shock absorber set is engineered in cooperation with Paioli to deliver ultimate racing performance. Constructed primarily from lightweight ergal with hardened steel stems, this compact oil-pneumatic suspension system features pressurized nitrogen compensation chambers for maximum stability.

Equipped with advanced hydraulic regulation, this pair offers 24-position expansion adjustment alongside dual low- and high-speed compression settings. Micrometric spring preloading ensures precise chassis tuning for competition use on Piaggio Zip SP and Quartz scooters.

Key Features

Brand Malossi
Model Number RS24/10-R
Manufacturer Part Number 4620162
Product Type Front and Rear Shock Absorber Pair
Type Oil-pneumatic shock absorber with parted compensation tank
Recommended Use Scooter competition and racing
Front Wheelbase 181 mm
Rear Wheelbase 333 mm (+ 25 mm)
Front Stroke 45 mm
Rear Stroke 62 mm
Piston Diameter 36 mm
Rod Diameter 14 mm
Body Material Ergal
Stem Material 38 NiCrMo4 UNI 7845 hardened steel
Expansion Adjustment 24 positions
Compression Adjustment Dual adjustment (low/high speed) with 10 positions each
Preload Adjustment Micrometric via ring nuts
Compatible Models Piaggio Zip SP 50 2T LC, Piaggio Quartz 50 2T LC
Shipping Weight 4.2 kg

Highlights

  • Complete front and rear racing suspension pair engineered by Malossi and Paioli
  • Constructed from lightweight ergal with 14 mm hard-chromed steel damper rods
  • Features 24 expansion settings and dual low/high-speed compression adjustment
  • Pressurized nitrogen external compensation tanks for consistent performance

Sizing & fit

Compatible with the following vehicles:

  • Piaggio Quartz 50 2T LC
  • Piaggio Zip SP 50 2T LC (<-2000)
  • Piaggio Zip SP 50 2T LC (2001->)

Compatibility

Manufacturer Model
PIAGGIO PIAGGIO QUARTZ 50 2T LC
PIAGGIO PIAGGIO ZIP SP 50 2T LC 2001->
PIAGGIO PIAGGIO ZIP SP 50 2T LC <-2000

What's included

  • 1x RS24/10-R Front Shock Absorber (181 mm)
  • 1x RS24/10-R Rear Shock Absorber (333 mm)
  • Mounting hardware and adjustment ring nuts

Downloads

Frequently asked questions

Which scooter models are compatible with this shock absorber set?

This pair is designed specifically for Piaggio Quartz 50 2T LC and Piaggio Zip SP 50 2T LC models.

What are the wheelbase dimensions of the shock absorbers?

The front shock absorber has a wheelbase of 181 mm, while the rear shock absorber features a 333 mm wheelbase with an additional 25 mm adjustment range.

What damping adjustments are available on the RS24/10-R?

The system offers 24-position expansion rebound adjustment, dual compression adjustment separated into low and high speeds across 10 positions each, and micrometric spring preload adjustment.

What materials are used in the construction of these shock absorbers?

The bodies are manufactured from ergal, featuring 14 mm rods made of hardened 38 NiCrMo4 steel with a hard chrome layer.
