• Malossi 7719308B MAXI WING Clutch Bell Ø 134 mm
1 1

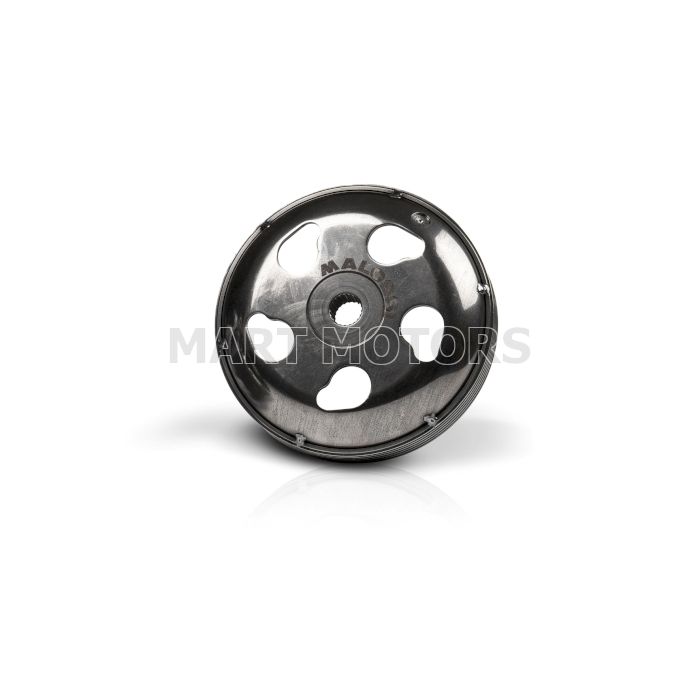

Malossi 7719308B MAXI WING Clutch Bell Ø 134 mm

Malossi 7719308B MAXI WING Clutch Bell Ø 134 mm

€94,36 EUR
€94,36 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The Malossi Maxi Wing Clutch Bell features a finned annular reinforcement ring engineered to deliver superior heat dissipation during aggressive launches and rapid acceleration. This race-proven design significantly expands surface area to lower operating temperatures and shield transmission components from excessive wear.

Constructed from deep-drawn ductile steel with a machined special steel hub, this clutch bell is dynamically balanced and nitride surface hardened to withstand high centrifugal forces and rigorous riding conditions.

Key Features

Brand Malossi
Manufacturer Part Number 7719308B
Product Type Clutch Bell
Inner Diameter 134 mm
Weight 993 g
Housing Material Deep-drawn ductile steel
Spline Hub Material Machined, welded and broached special steel
Surface Treatment Nitride hardened
Balancing Dynamically balanced

Highlights

  • Reinforced finned cooling ring for maximum heat dissipation
  • Deep-drawn ductile steel housing with a precision-machined friction surface
  • Dynamically balanced to resist high-RPM centrifugal forces
  • Nitride hardened surface for extended durability under severe conditions

Materials & care

Manufactured from deep-drawn ductile steel and specialized welded steel with a nitride hardened finish. Inspect regularly for friction wear and keep free from oil or grease contamination.

Compatibility

Manufacturer Model
APRILIA APRILIA SR 125 2T
APRILIA APRILIA SR 150 2T
GILERA GILERA RUNNER FX 125 2T LC
GILERA GILERA RUNNER FXR - SP 180 2T LC
GILERA GILERA TYPHOON X 125 2T
GILERA GILERA TYPHOON 125 2T
ITALJET ITALJET DRAGSTER 125 2T LC
ITALJET ITALJET DRAGSTER 180 2T LC
PIAGGIO PIAGGIO HEXAGON LX 125 2T LC
PIAGGIO PIAGGIO HEXAGON LXT 180 2T LC
PIAGGIO PIAGGIO HEXAGON 125 2T LC
PIAGGIO PIAGGIO HEXAGON 150 2T LC
PIAGGIO PIAGGIO SKIPPER 125 2T
PIAGGIO PIAGGIO SKIPPER 150 2T
PIAGGIO PIAGGIO SKIPPER LX 125 2T
PIAGGIO PIAGGIO SKIPPER LXT 150 2T

Frequently asked questions

What is the primary benefit of the reinforced cooling ring?

The finned reinforcement ring increases surface area for enhanced heat dissipation, lowering operating temperatures and reinforcing the bell against high centrifugal forces.

What is the inner diameter and weight of this clutch bell?

This clutch bell has an inner diameter of 134 mm and weighs 993 g.

What materials are used in its construction?

The housing is made from deep-drawn ductile steel, paired with a machined and broached special steel spline hub, finished with a nitride surface hardening.

Which scooter models are compatible with this part?

It is compatible with various 125cc to 180cc 2-stroke maxi scooters from Aprilia, Gilera, Italjet, and Piaggio, including models like the Gilera Runner, Piaggio Hexagon, and Italjet Dragster.

View full details
