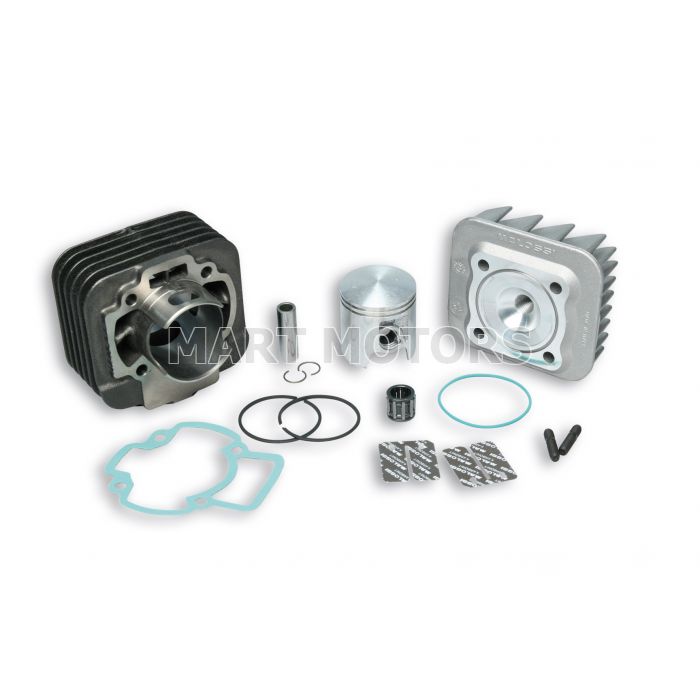

Malossi 316926 Cast Iron Cylinder Kit Ø 47 mm Pin Ø 12
Malossi 316926 Cast Iron Cylinder Kit Ø 47 mm Pin Ø 12
Kan beschikbaarheid voor afhalen niet laden
Malossi cast iron thermal units represent the ultimate balance of robust durability and refined engineering for your two-stroke scooter engine. Designed with 6 transfer ports and a durable 2-ring piston, this kit delivers a noticeable performance upgrade while maintaining compatibility with standard or homologated exhaust systems.
Manufactured to exacting standards, each cylinder and piston assembly is precision-matched within a strict tolerance of 20 microns to ensure optimal compression, smooth operation, and extended service life across urban and sport riding conditions.
Key Features
| Brand | Malossi |
| Model Number | 316926 |
| Product Type | Cylinder Kit |
| Cylinder Material | Cast Iron |
| Bore Diameter | 47 mm |
| Gudgeon Pin Diameter | 12 mm |
| Transfer Ports | 6 |
| Piston Rings | 2 |
| Intended Use | Urban/Sport |
| Power Output | 8-10 cv @ 8,500 rpm |
| Recommended Carburetor | Ø 17-19 mm |
| Recommended Exhaust | Original or homologated exhaust |
Highlights
- Durable cast iron cylinder construction designed for high longevity
- Precision-engineered cylinder and piston matching within a 20-micron tolerance
- Features 6 transfer ports and a 2-ring piston for optimized combustion
- Delivers 8-10 cv @ 8,500 rpm for urban and sport applications
- Compatible with standard original or homologated exhaust setups
Materials & care
Constructed from high-grade, wear-resistant cast iron with precision-machined internal surfaces. For optimal longevity and performance, ensure proper 2-stroke oil lubrication and adhere to standard engine break-in procedures.
Compatibility
| Manufacturer | Model |
|---|---|
| APRILIA | APRILIA MOJITO CUSTOM 50 2T |
| APRILIA | APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M) |
| APRILIA | APRILIA SCARABEO STREET 50 2T (PIAGGIO) |
| APRILIA | APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M) |
| APRILIA | APRILIA SPORTCITY ONE STREET 50 2T euro 2 |
| APRILIA | APRILIA SR MOTARD 50 2T euro 2 |
| APRILIA | APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M) |
| DERBI | DERBI ATLANTIS - BULLET 50 2T 2003-> |
| DERBI | DERBI VARIANT Sport 50 2T |
| GILERA | GILERA EASY MOVING 50 2T |
| GILERA | GILERA ICE 50 2T |
| GILERA | GILERA STORM 50 2T |
| GILERA | GILERA STALKER 50 2T |
| GILERA | GILERA TYPHOON 50 2T |
| GILERA | GILERA TYPHOON X 50 2T |
| ITALJET | ITALJET JET SET 50 2T |
| ITALJET | ITALJET TORPEDO NEW 50 2T |
| PIAGGIO | PIAGGIO DIESIS 50 2T |
| PIAGGIO | PIAGGIO NRG EXTREME 50 2T |
| PIAGGIO | PIAGGIO FLY 50 2T |
| PIAGGIO | PIAGGIO FREE 50 2T |
| PIAGGIO | PIAGGIO LIBERTY 50 2T |
| PIAGGIO | PIAGGIO NRG MC3 DT 50 2T |
| PIAGGIO | PIAGGIO NRG Power DT 50 2T (C453M) |
| PIAGGIO | PIAGGIO SFERA RESTYLING 50 2T |
| PIAGGIO | PIAGGIO SFERA 50 2T |
| PIAGGIO | PIAGGIO TYPHOON 50 2T 2007->2010 |
| PIAGGIO | PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M) |
| PIAGGIO | PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M) |
| PIAGGIO | PIAGGIO ZIP Fast Rider 50 2T |
| PIAGGIO | PIAGGIO ZIP 50 2T 2000-> (C25EM) |
| PIAGGIO | PIAGGIO ZIP 50 2T <-1999 |
| VESPA | VESPA ET2 50 2T 2000-> |
| VESPA | VESPA ET2 50 2T <-1999 |
| VESPA | VESPA LX 50 2T |
| VESPA | VESPA Primavera 50 2T euro 2 (C533M) |
| VESPA | VESPA S 50 2T euro 2 (C381M) |
| VESPA | VESPA Sprint 50 2T euro 2 |
What's included
| SKU | Name |
|---|---|
| 116923 | Complete cylinder gasket set Ø 47 for original cylinder head |
| 117570 | Complete cylinder gasket set Ø 40-47-47,6 |
| 193298e | 2 M studs 6x18 (UNI 5911) for exhasut system |
| 2311783 | Pin Ø 12x08x38 for piston |
| 277054.c0 | 6 VL11 and original valve carbon fibre petals with thickness 0,30/0,35/0,40 |
| 316915 | Cast-iron cylinder Ø 47 pin Ø 12 |
| 347036.40 | Piston 2T Ø 47.4 with pin Ø 12 and 2 rectangular rings |
| 347036.80 | Piston 2T Ø 47.8 with pin Ø 12 and 2 rectangular rings |
| 347849 | Piston 2T Ø 47 with pin Ø 12 and 2 rectangular rings size 0 |
| 347849.a0 | Piston 2T Ø 47 with pin Ø 12 and 2 rectangular rings size A |
| 347849.b0 | Piston 2T Ø 47 with pin Ø 12 and 2 rectangular rings size B |
| 347849.c0 | Piston 2T Ø 47 with pin Ø 12 and 2 rectangular rings size C |
| 347849.d0 | Piston 2T Ø 47 with pin Ø 12 and 2 rectangular rings size D |
| 354501 | 2 piston rings Ø 47x1.5 rectangular |
| 354501.40 | 2 piston rings Ø 47.4x1.5 rectangular |
| 354501.80 | 2 piston rings Ø 47.8x1.5 rectangular |
| 364450 | Pin clip Ø 12x1 C-shaped |
| 387118 | Cylinder head Ø 47 aluminium air |
| 6611785b | ROLLER BEARING Ø 12x17x16 |
